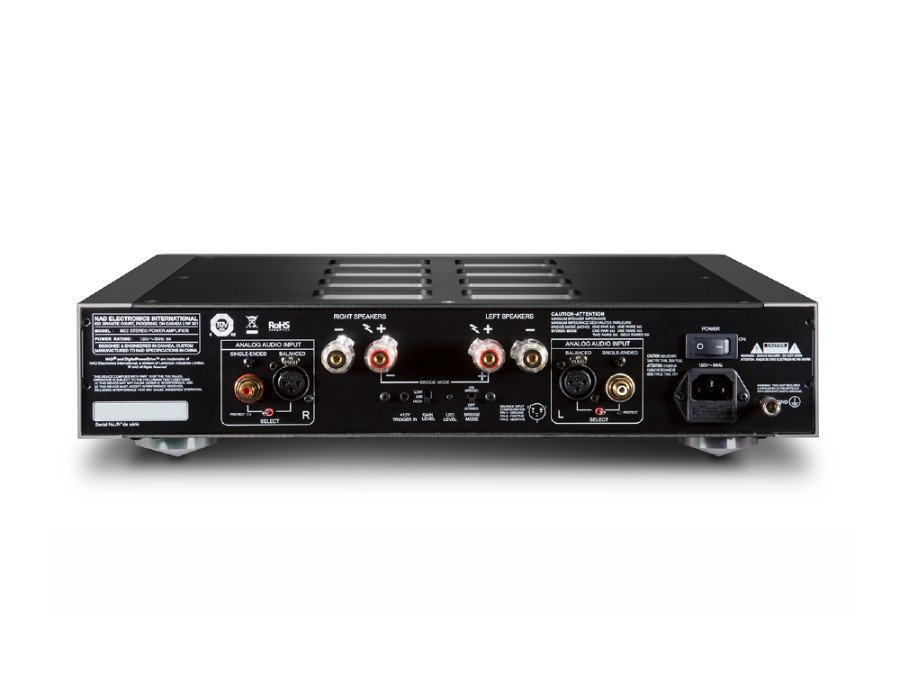

NAD M22 V2

NAD M22 V2

The M22 is using the latest nCore^™ amplifier technology licensed from Hypex to provide a nearly ideal amplifier with distortion below measurement, ultra-high damping factor, and unconditional stability with any speaker. Tight, detailed sound with amazing control and transparency gets the best performance available. With nCore, Hypex has refined their UcD concept to new levels of perfection by improving the modulator for more accurate feedback subtraction and PWM generation. The all-discrete driver and output stage have also been improved for lower open-loop THD as well as lower idling losses, normally conflicting requirements with conventional IC driver circuitry. An added control loop incorporating an integrator with adaptive clipping enables 20dB more feedback to be used across the audio band because of its extremely low-phase shift resulting in a dramatic reduction in distortion across the audio band. This is added to UcD’s already amazing characteristics of load invariance and high current capability, common characteristics of great-sounding amplifiers.

Effortless Power

Employing the latest generation of digital PowerDrive™, the M22 offers a minimum of 300W per channel with amazing reserves of dynamic power at lower impedances. The M22 is capable of >400W dynamic power per channel even in 8 ohms, >700W in 4 Ohms, and 1,000W in 2 ohms. Need more power? Select Bridge Mode and the M22 offers 950W at 8 Ohms in Mono. It can effortlessly power any loudspeaker to live performance levels with amazing efficiency and low power consumption. Control for PowerDrive is derived by sensing the average output power, applying a time constant, and then cleanly hard clipping the signal thus limiting it to the rated continuous clipping power over a sustained loading. By controlling the power envelope maximum clean power is obtained for every operating condition.
